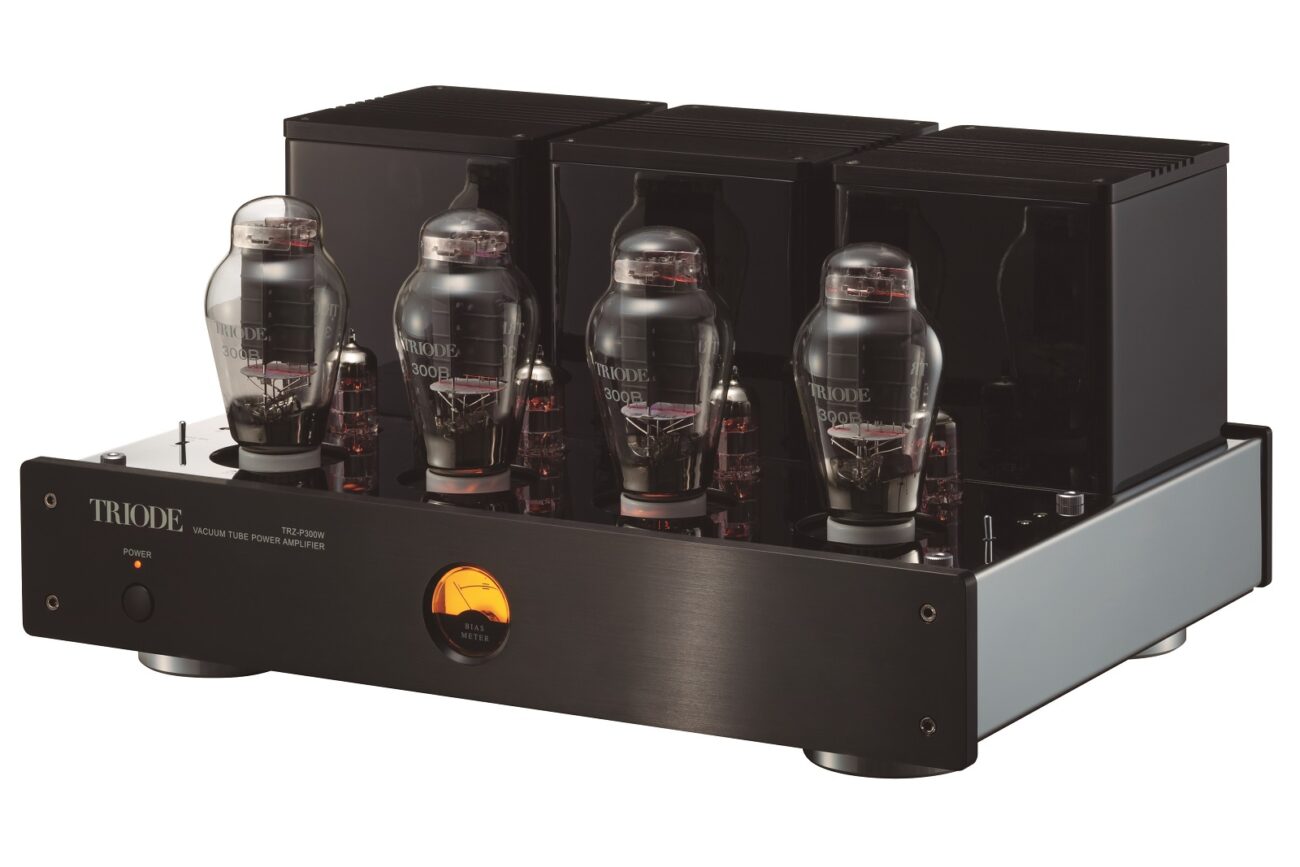

TRZ-P300W - TRIODE
300B parallel single ended stereo power amplifier
Specifications
300B class A parallel single ended
Tubes : 300B x 4, 12AU7 x 2, 12AX7 x 2
Bias : Fixed bias, adjustable with bias meter
Output power : 20W＋20W（8Ω）
Frequency response：5Hz～70kHz（-3dB）
S/N ratio：93dB
Input terminals：MAIN IN x 1
Input sensitivity/impedance：MAIN IN 720mV/10kΩ
Gain control : 0dB, -3dB, -6dB, -12dB
Speaker output terminals：4～8Ω
Power consumption ： 240W
Dimensions ：W440 x D350 x H220mm
Weight：33.6kg
Accessories : Tube cover
JUNONE 845S Integrated Amplifier
JUNONE 845S Integrated Amplifier
845 class A single ended integrated amplifier
Tubes: 845 x2 ,PSVANE WE300B x2 , 12AT7 x2 , 12AX7 x2 Bias : Fixed bias, adjustable with bias meter Output power : 22W+22W at 8Ω Frequency response: 25Hz-36kHz(±3dB) S/N ratio : 85dB Input sensitivity/impedance : LINE: 220mV/100kΩ
MAIN IN: 1,500mV/10kΩ Input terminals : RCA unbalanced x 5
(LINE1-4 , MAIN IN x 1)
Speaker output terminals: 4Ω-8Ω
Other function: MAIN IN switch
Power consumption: 330W Dimensions/Weight : W430xD410xH277mm/45.0kg
Accessories: Tube cover, remote control unit

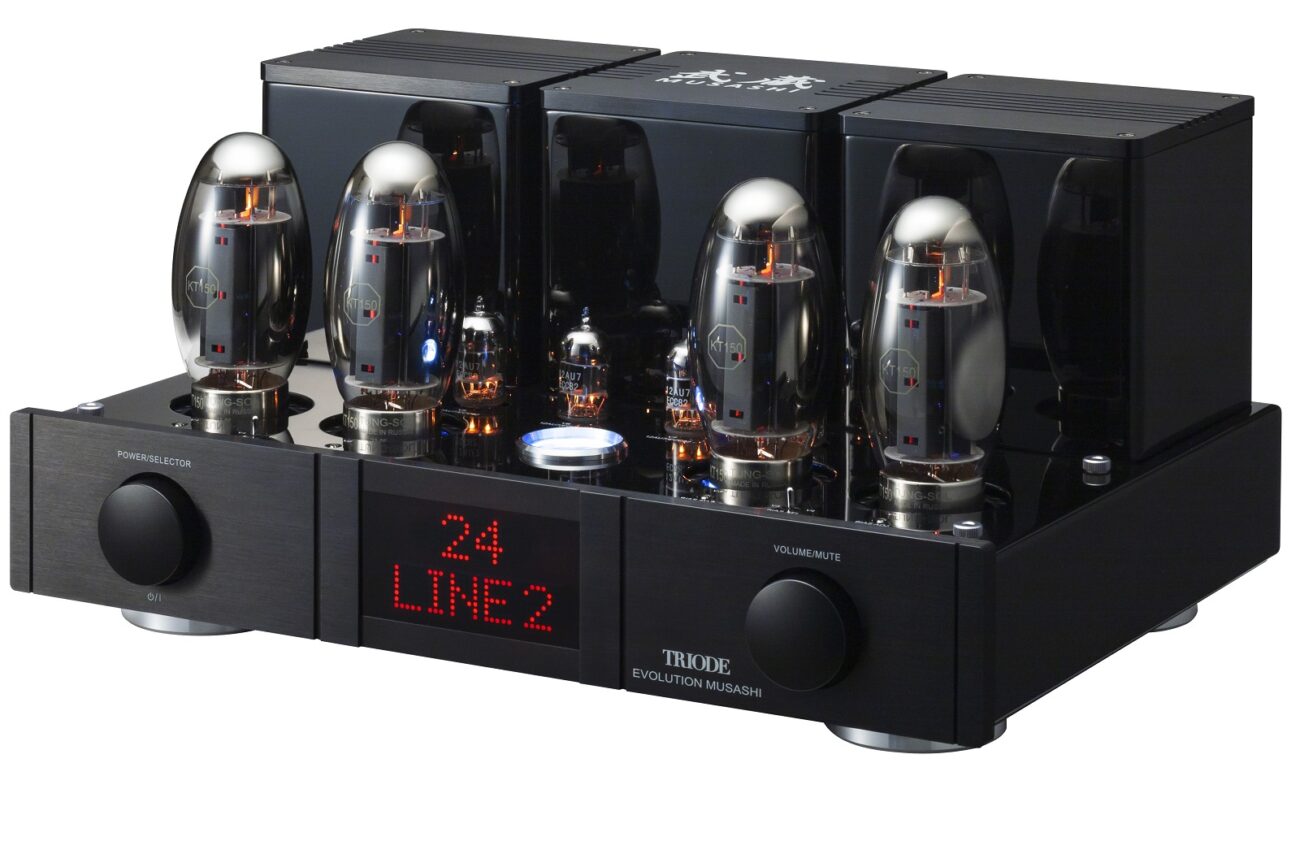

EVOLUTION MUSASHI Integrated Amplifier
KT150 class AB push-pull integrated amplifier
Tubes: KT150 x 4 , 12AU7 x 4
Bias: Fixed bias, adjustable with bias meter
Output power: 100W+100W at 8Ω
Frequency response: 6Hz－80kHz(-3dB)
S/N ratio: 93dB
Input sensitivity/impedance: LINE:420mV/100kΩ, MAIN IN:1.2V/10kΩ
Input terminals: RCA unbalanced x 5, (LINE1-4 , MAIN IN x 1)
Speaker output terminals: 4~ 8Ω
Other function: MAIN IN switch (Rear panel),
Remote control: POWER, VOLUME, MUTE
INPUT SERECTOR, DIMMER
Power consumption: 520W (190W/ No signal)
Dimensions/Weight: W440xD337xH220mm /32.8kg
Accessories: Tube cover , Remote control unit

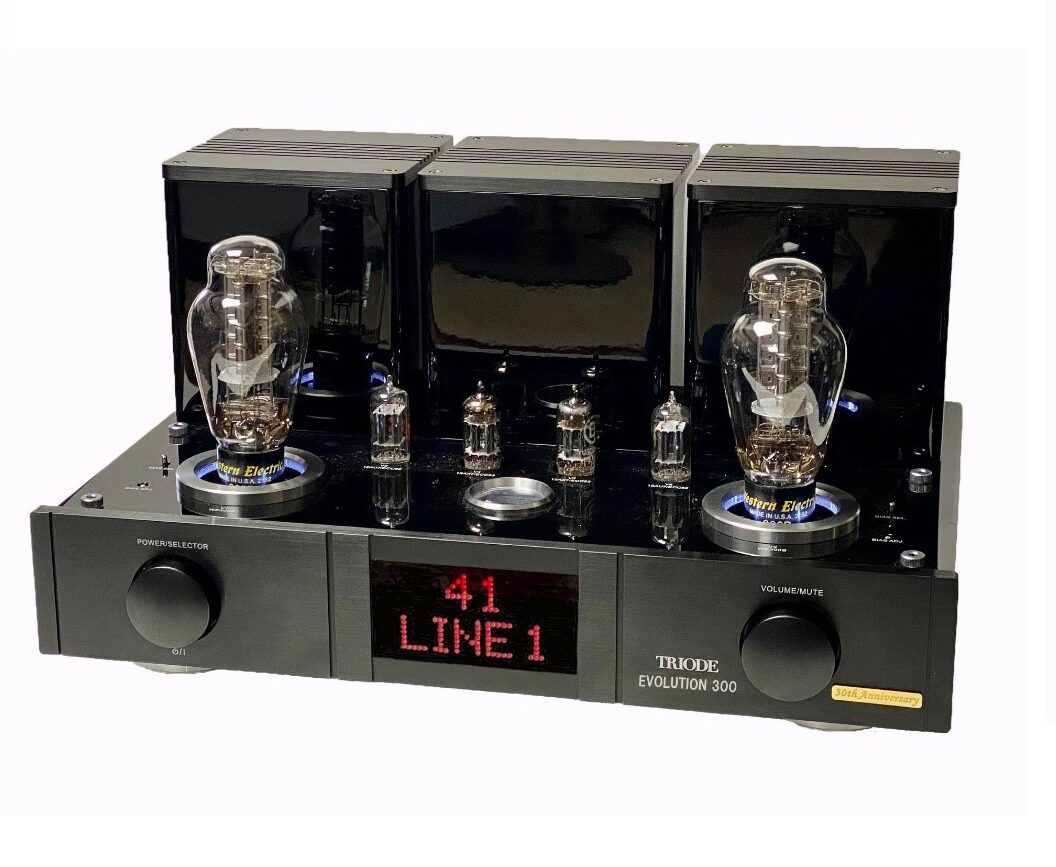

EVOLUTION 300 30th Anniversary Integrated Amplifier
300B class A single ended integrated amplifier
Tubes: Western Electric 300B x 2, 12AX7 x 2, 12AU7 x 2
Bias: Fixed bias, adjustable with bias meter
Output power: 12W+12W at 8Ω
Frequency response : 16Hz－56kHz(-3dB) S/N ratio : 93dB
Input sensitivity/impedance : LINE:310mV/100kΩ
MAIN IN:900mV/100kΩ
Input terminals: RCA unbalanced x 5 (LINE1-4 ,MAIN IN x 1)
Speaker output terminals : 4~ 8Ω
High quality terminals
Other function: MAIN IN switch (Rear panel),
Remote control: POWER, VOLUME, MUTE, INPUT SERECTOR, DIMMER
Power consumption: 130W
Dimensions/Weight: W440xD330xH235mm /29.0kg
Accessories: Tube cover , Remote control unit
EVOLUTION Integrated Amplifier
KT88 class AB push-pull integrated amplifier
Tubes: KT88 x 4 , 12AX7 x 2 , 12AU7 x 2
Bias: Fixed bias, adjustable with bias meter
Output power: 40W+40W at 8Ω
Frequency response: 17Hz－63kHz(-2dB)
S/N ratio: 93dB
Input sensitivity/impedance: LINE:320mV/100kΩ
MAIN IN: 670mV/10kΩ
Input terminals: RCA unbalanced x 5
(LINE1-4 ,MAIN IN x 1)
Speaker output terminals: 4~ 8Ω
Other function: MAIN IN switch (Rear panel),
Remote control: POWER, VOLUME, MUTE, INPUT SERECTOR, DIMMER
Power consumption: 310W (170W/ No signal)
Dimensions/Weight: W440xD330xH210mm/30.0kg
Accessories: Tube cover , Remote control unit

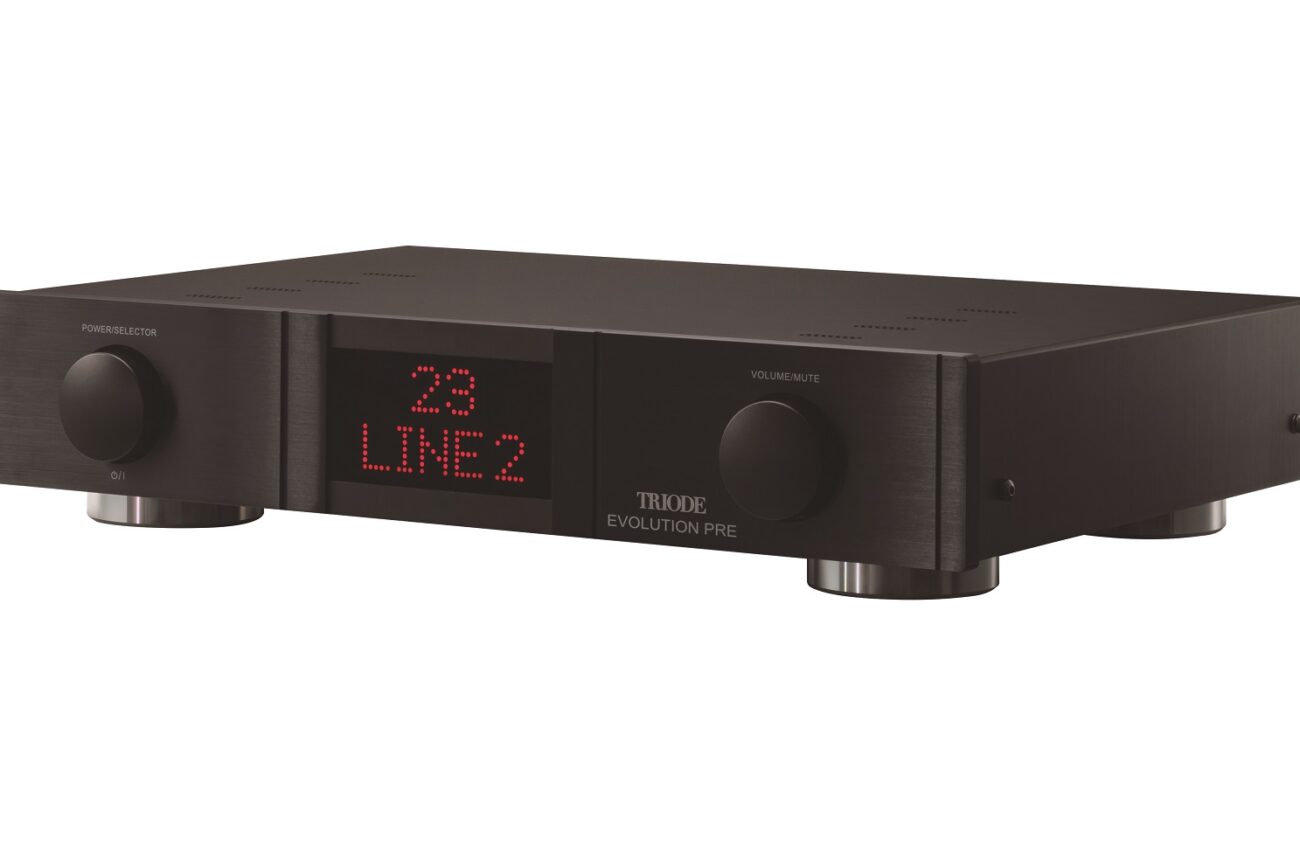

EVOLUTION PRE Pre Amplifier
Tubes: 12AX7 x 4
Frequency response: 16Hz－170kHz(-1dB)
S/N ratio: 90dB
Input terminals: RCA unbalanced x 4(LINE1-4)
Input sensitivity/impedance: 250mV/20kΩ
Oouput terminals: RCA unbalanced x 2
Remote control: POWER, VOLUME, MUTE, INPUT SERECTOR, DIMMER
Power consumption: 40W
Dimensions/Weight: W440xD320xH100mm/8.0kg
Accessories: Remote control unit
TRX-1 Pre Amplifier
Tubes: 12AX7(ECC83)x4, 274B(5U4G)x1
Frequency response: 10Hz-100kHz(-1,-2dB) S/N ratio : 96dB Input sensitivity/impedance: 250mV/100kΩ
Input terminals: 5 ( RCA unbalancedx5(LINE1-5))
Output terminals: 3(RCA unbalancedx3)
Equalizer control frequency: 150, 400, 2k, 10kHz±6dB Power consumption : 30W Dimensions/Weight: W345xD310xH180mm/11kg
Accessories: Tube cover, Wooden side plates, Remote control
TRX-4 Pre Amplifier
Tubes: 12AX7(ECC83)x4
Frequency response: 10Hz-100kHz(-1,-2dB) S/N ratio : 96dB
Input sensitivity/impedance: 250mV/100kΩ
Input terminals: 5 ( RCA unbalancedx5(LINE1-5))
Output terminals: 3(RCA unbalancedx3)
Equalizer control frequency: 150, 400, 2k, 10kHz±6dB
Other functions: Balance control
Power consumption: 30W
Dimensions/Weight: W345xD310xH180mm/11kg
Accessories: Tube cover, Wooden side plates, Remote control
TRX-P300M Power Amplifier
300B class A parallel single ended monaural power amplifier
Tubes: 300B x2 , 12BH7 x1 , 12AU7 x1 Bias : Self bias
Output power: 15W at 8Ω Frequency response : 10Hz-50kHz(-3dB) S/N ratio: 87dB Input sensitivity/impedance : 800mV/100kΩ Input terminals: RCA unbalanced x1 Input gain selector: 0dB , -6dB Speaker output terminals : 6Ω/8Ω/16Ω Power consumption: 110W Dimensions/Weight : W185xD430xH203mm/16kg
Accessories: Tube cover
TRX-P300S Power Amplifier
300B class A single ended power amplifier NEW
Tubes: 300B x2, 12AT7 x2, 12AU7 x1 Bias : Fixed bias, adjustable with bias meter Output power: 8W+8W at 8Ω Frequency response : 19Hz-50kHz(±3dB) S/N ratio: 86dB Input sensitivity/impedance: 300mV/100kΩ Input terminals : RCA unbalanced x1 Input gain selector : 0dB , -3dB , -6dB, -12dB Speaker output terminals : 4Ω-8Ω
Other function: POWER DIRECT switch, volume control
Power consumption: 91W Dimensions/Weight: W340xD320xH210mm/17.5kg
Accessories : Tube cover
TRX-P88S Power Amplifier
KT88 class A single ended power amplifier
Tubes: KT88 x2 , 12AU7 x3 Bias : Fixed bias, adjustable with bias meter Output power: 10W+10W at 8Ω Frequency response : 19Hz-60kHz(±3dB) S/N ratio: 86dB Input sensitivity/impedance : 250mV/100kΩ Input terminals : RCA unbalanced x1 Input gain selector: 0dB , -3dB , -6dB, -12dB Speaker output terminals: 4Ω-8Ω Other function: POWER DIRECT switch, volume control Power consumption: 91W Dimensions/Weight : W340xD320xH188mm/16.2kg
Accessories: Tube cover
Luminous 84 Integrated Amplifier
EL84 class AB push-pull integrated amplifier
Tubes: EL84(6BQ5) x4 , 12AU7 x3
Bias: Self bias
Output power: 11W+11W at 8Ω
Frequency response: 17Hz-70kHz(±2dB)
S/N ratio: 79dB
Input sensitivity/impedance: LINE150mV/100kΩ, MM2.5mV/47kΩ
Input terminals: RCA unbalanced x3(LINE1-3) , MM x1
Speaker output terminals: 4Ω-8Ω
Headphone output: 6.3mm stereo jack
Power consumption: 130W
Dimensions/Weight: W305xD255xH170mm/11.4kg
Accessories: Tube cover
TRV-A150XR Integrated Amplifier
KT150 class A single ended integrated amplifier
Tubes: KT150 x2, 12AX7 x1, 12AU7 x2
Bias: Fixed bias, adjustable with bias meter
Output power: 18W+18W at 8Ω
Frequency response: 16Hz-62kHz(-3dB), S/N ratio : 90dB
Input sensitivity/impedance: LINE 400mV/100kΩ, MM2.5mV/47kΩ
Input terminals: RCA unbalanced x3(LINE1-3), MM x1
Output terminals: Headphone x1
Speaker output terminals: 4-8Ω High quality speaker terminal
Other functions: Remote control (Volume, Mute, Input selector)
Power consumption: 180W
Dimensions/Weight: W345xD320xH210mm/18kg
Accessories: Tube cover, Wooden side plates, Remote control
TRV-A300XR Integrated Amplifier
300B class A single ended integrated amplifier
Tubes: 300B x2, 12AX7 x1, 12AU7 x2
Bias: Fixed bias, adjustable with bias meter Output power: 8W+8W at 8Ω
Frequency response: 10Hz-50kHz(-3dB)
S/N ratio: 90dB
Input sensitivity/impedance: LINE 700mV/100kΩ, MM2.5mV/47kΩ
Input terminals: RCA unbalanced x3(LINE1-3) , MM x1
Output terminals: REC OUT x1,Headphone x1
Speaker output terminals: 6Ω, 8Ω High quality speaker terminal
Other functions: Remote control (Volume, Mute)
Power consumption: 120W
Dimensions/Weight: W345xD320xH195mm/17kg
Accessories: Tube cover, Wooden side plates, Remote control

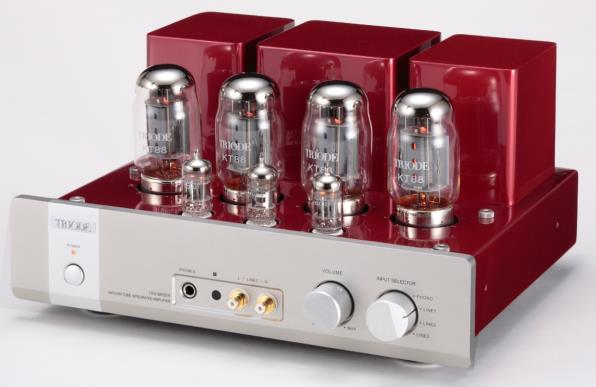

TRV-88XR Integrated Amplifier
KT88 class AB push-pull integrated amplifier
Tubes: KT88 x4, 12AX7 x1, 12AU7 x2
Bias: Fixed bias, adjustable with bias meter
Output power: 35W+35W at 8Ω
Frequency response: 10Hz-90kHz (-4dB)
S/N ratio: 90dB
Input sensitivity/impedance :LINE 340mV/100kΩ, MM 2.5mV/47kΩ
Input terminals: RCA unbalanced x3(LINE1-3) , MM x1
Output terminals: Headphone x1
Speaker output terminals: 4-8Ω High quality speaker terminal
Other functions: Remote control (Volume , Mute, Input selector)
Power consumption: 280W (No signal 120W)
Dimensions/Weight: W345xD320xH185mm/17kg
Accessories: Tube cover , Wooden side plates, Remote control
TRX-EQ7 Phono equalizer Amplifier
Solid-state phono equalizer amplifier
MC circuit : class A FET
RIAA deviation : ±0.5dB(20Hz-20kHz)
Total harmonic distortion: 0.025%
Channel separation: 70dB
Input terminals: 1 (RCA)
Input sensitivity : MM2.5mV, MC0.25mV
Adaptable impedance : MM47kΩ, MC4Ω-47Ω
Gain : MM46dB, MC64dB
Output terminals : 1 (RCA)
Output impedance : 300Ω
With AC/DC power adapter (DC36V/1A)
Dimensions/Weight : W90xD230xH100mm/1.0kg

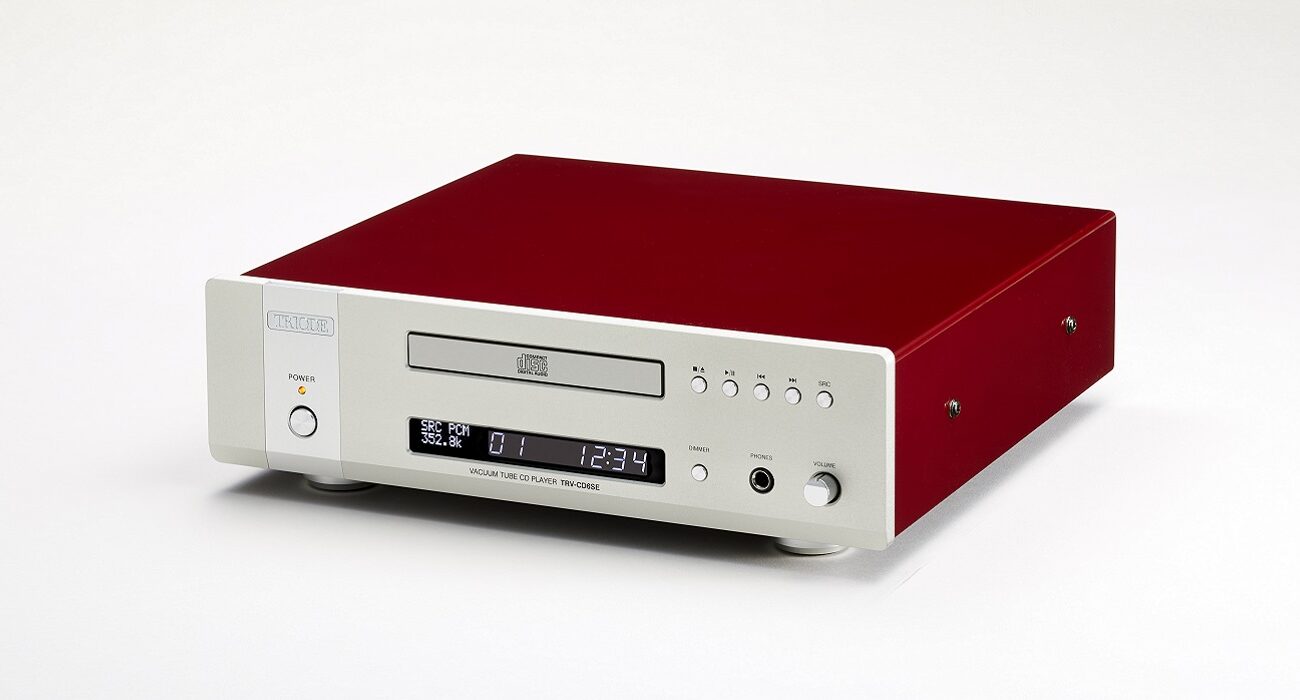

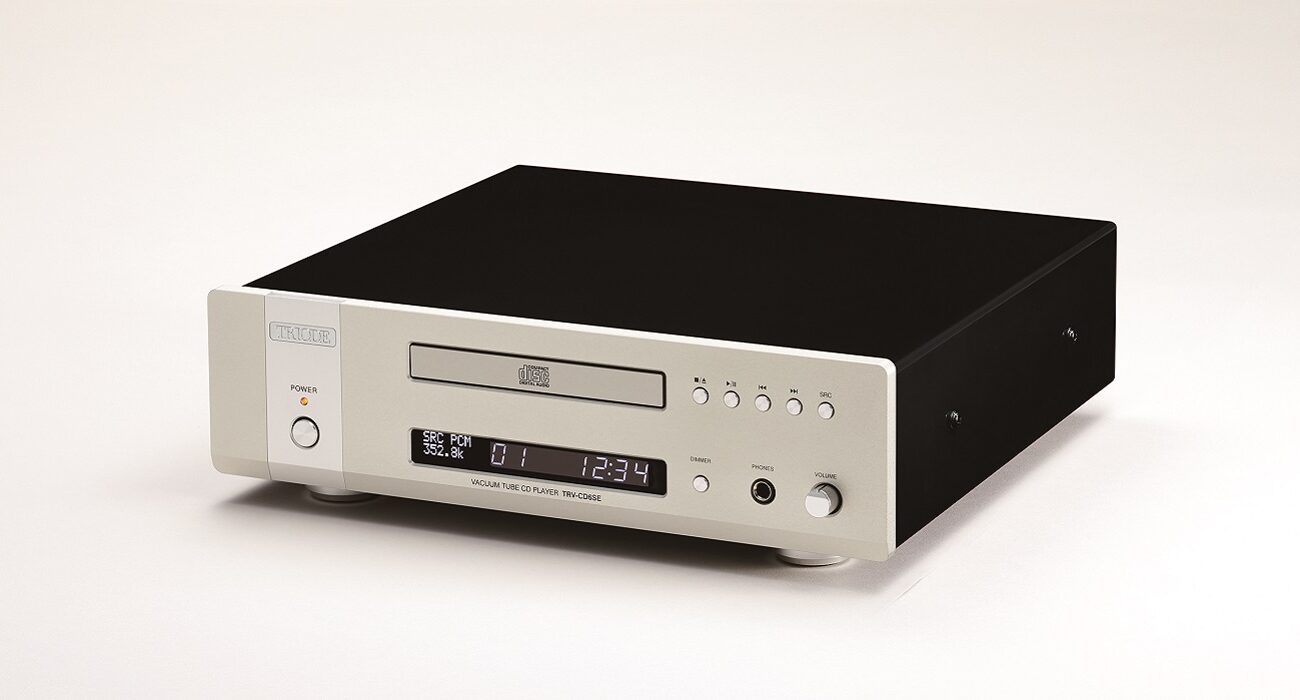

TRIODE CD PLAYER, TRV-CD6SE
TRV-CD6SE CD Player
6922 tube buffer circuit CD player
Tubes : 6922(6DJ8/E88CC) x2
Playable disc : CD, CD-R MQA-CD full decode
D/A convertor : ESS Technology SABRE ES9038Q2M
Analogue output : Tube output RCA unbalanced x1
Solid-state output RCA unbalanced x1
Headphone output : 6.3mm stereo jack
Digital output : RCA coaxial x1 , Optical(TOS) x1
External sync.: WORD CLOCK, 10MHz
Other functions : Sampling rate converter to 352.8kHz/32bit or DSD5.6MHz
Power consumption : 28W
Dimensions/Weight : W345xD335xH105mm/8.1kg
Accessories : Remote control
Note: For 220V or 240V only
